Maximizer
The best solution for improving piglet survival rate and promoting healthy growth
Adequate feed intake for young piglets leads to healthy growth and greatly contributes to enhanced farm productivity.
Promotes optimum growth
- Wet or liquefied feed helps piglets easily transition to grain-based feed.
- Easy adaptation to the feeder allows immediate consumption of both feed and water.
- Faster and sufficient intake enables uniform piglet growth without runts or lagging behind.
- The round-shaped trough allows 360‑degree access for piglets, reducing stress and competition during feeding.
Hygienic Logevity
- Stainless steel trough is durable and easy to clean
Reduces Waste
- The sensor system controls the supply of feed and water precisely, preventing unnecessary dispensing and significantly reducing feed and water waste.
- With feed waste reduced to nearly zero, feed is saved and overall feed efficiency is improved.
Easy to use
- Easy and simple to operate — once the feed and water supply levels are set on the control box panel, feeding starts immediately.
- Reduces management effort and labor requirements on the farm.
- Easy to install and easy to clean.
Models & basic specifications
Nursery KSN671
Nursery KSN731
Finisher KSF831
※ Scroll sideways to see the models.
Specifications
| Feeder | Capacity per feeder | Trough size(mm) | Specifications | |
|---|---|---|---|---|
| Nursery KSN671 | 6 ~ 30 kgs (13 ~ 66 lbs) | 40~50 pigs | 670mm | Power : 110~230V, 50Hz or 60Hz Water Connection : 8mm or 10mm hose Frame & Trough : Stainless Steel Hopper : 95L |
| Nursery KSN731 | 6 ~ 30 kgs (13 ~ 66 lbs) | 50~60 pigs | 730mm | |
| Finisher KSF831 | 20 ~ 120 kgs (44 ~ 265 lbs) | 40~50 pigs | 830mm | |

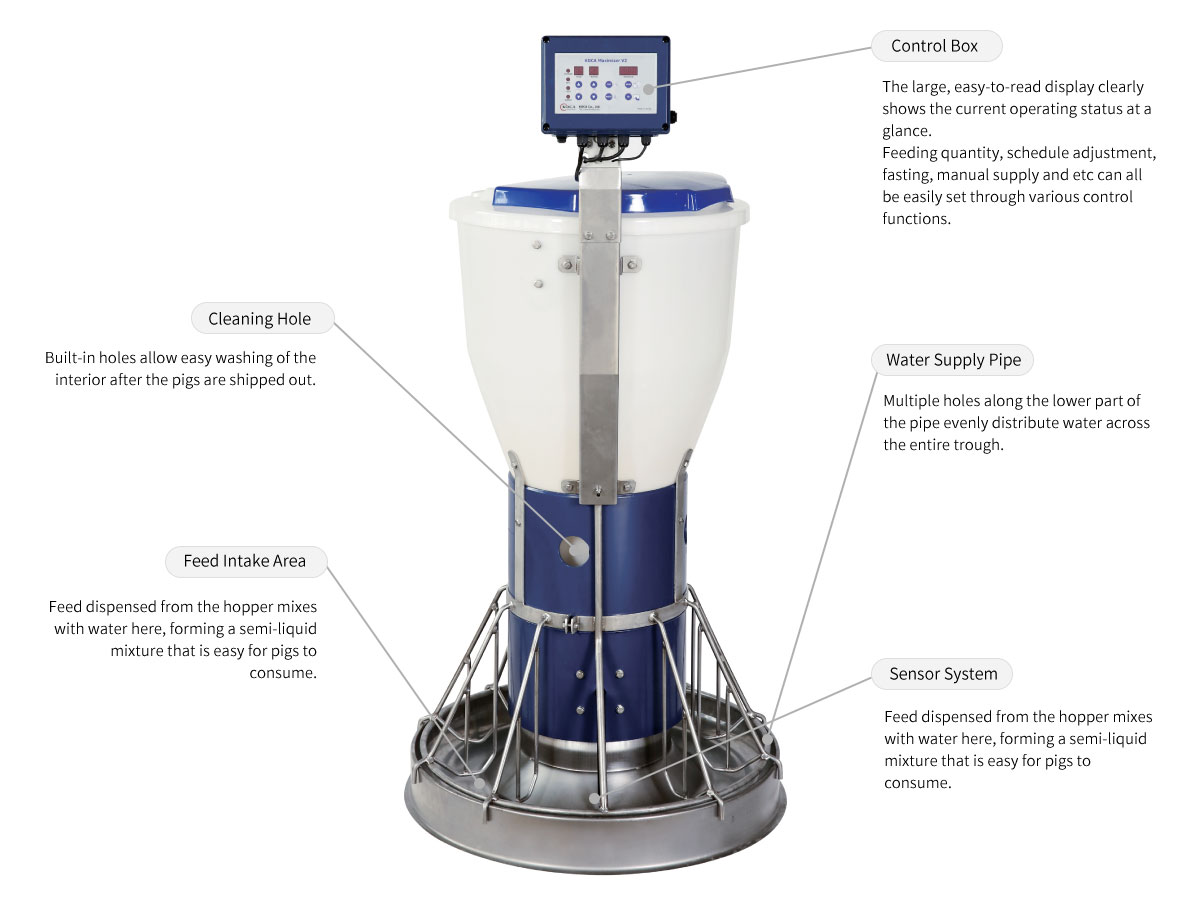

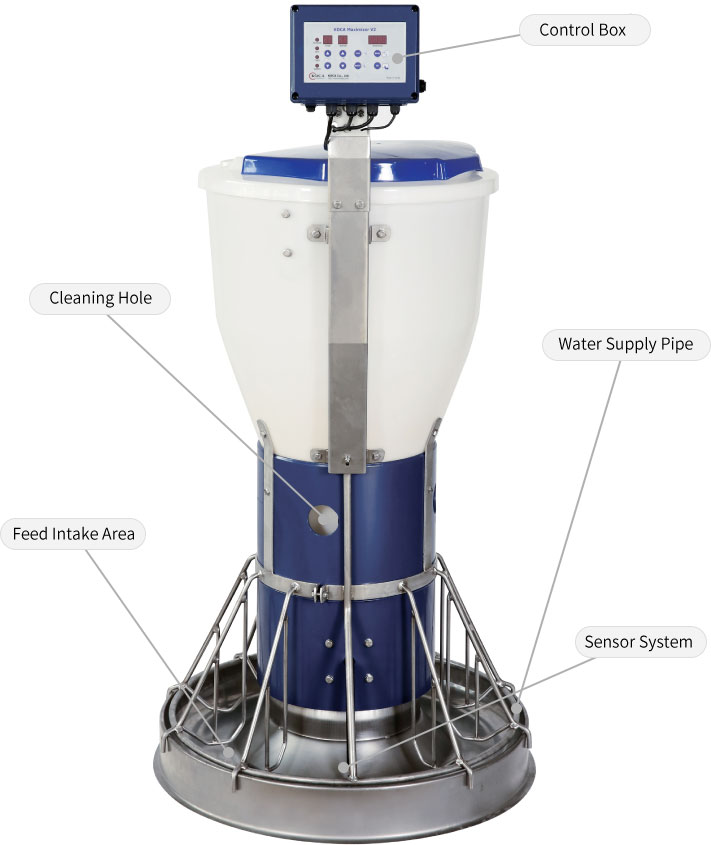

Control Box
The large, easy-to-read display clearly
shows the current operating status at a
glance.
Feeding quantity, schedule adjustment,
fasting, manual supply and etc can all
be easily set through various control
functions.
Cleaning Hole
Built‑in holes allow easy washing of the interior after the pigs are shipped out.
Feed Intake Area
Feed dispensed from the hopper mixes with water here, forming a semi‑liquid mixture that is easy for pigs to consume.
Sensor System
Monitors the condition of the trough and sends the signal to the control box when the next feed supply is needed.
Water Supply Pipe
Multiple holes along the lower part of the pipe evenly distribute water across the entire trough.
