Maximizer-S
The smartest and most cost-effective solution for implementing a liquid feeding system on your farm.
A simply intelligent liquid feeding system engineered to enhance growth performance and feed efficiency in pigs.
When feed is delivered to the trough, a precisely programmed quantity of water is automatically added, enabling pigs to consume feed and water simultaneously with ease.
Superior feed and water consumption results in:
- Faster and healthier growth with reduced mortality
- Higher percentage of top-grade pigs
- Quicker recovery of runts and underperforming pigs
Cost Savings on Feed:
- Liquidized feed significantly improves feed efficiency
- Allows use of lower-grade feed without compromising nutrition
- Enables sufficient intake of feed, allowing the use of lower-grade feed without affecting growth
- Minimizes feed wastage to nearly zero
Smart Investment:
- Affordable entry to advanced liquid feeding technology
- Easy installation and operation, no professional operator required
- Lower maintenance and operating costs
- Simple, reliable design reduces risk of malfunctions
- 24/7 ad libitum fresh feeding ensures maximum intake and growth potential
Models & basic specifications
Nursery KSNS620
Grower KSGS670
Finisher KSFS750
※ Scroll sideways to see the models.
Specifications
| Feeder | Capacity per feeder | Trough size(mm) | Specifications | |
|---|---|---|---|---|
| Nursery KSNS620 | 6 ~ 30 kgs (13 ~ 66 lbs) | 40~50 pigs | 620mm | Power : 110~230V, 50Hz or 60Hz Water Connection : 8mm or 10mm hose Frame & Trough : Stainless Steel Hopper : 95L |
| Grower KSGS670 | 30 ~ 60 kgs (66 ~ 132 lbs) | 30~40 pigs | 670mm | |
| Finisher KSFS750 | 30 ~ finish (66 lbs ~ finish) | 30~40 pigs | 750mm | |

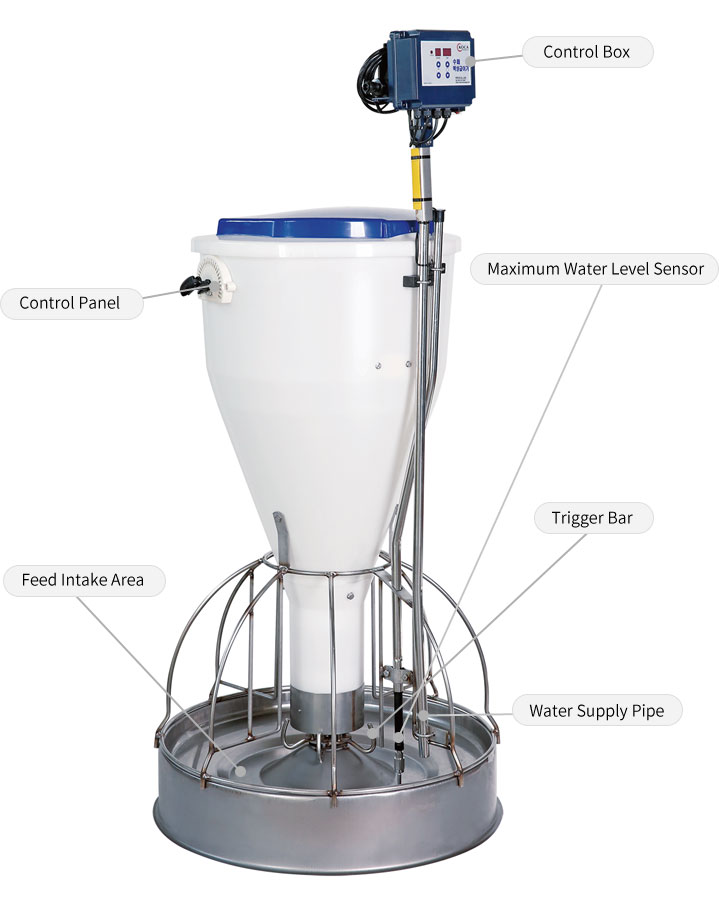

Control Box
Set the water supply time and waiting time, and the system will start operating immediately.
Control Panel
Precise adjustment of feed dispensing in 25 increments.
Feed Intake Area
Feed dispensed from the hopper mixes with water here, forming a semi‑liquid mixture that is easy for pigs to consume.
Trigger Bar
Designed for precise dispensing of feed.
Its user-friendly structure allows pigs to
easily operate it, so even those using
the feeder for the first time adapt
quickly.
Maximum Water Level Sensor
When the water level rises and touches
the tip of the sensor, the water supply is
automatically stopped. When the level
drops, water supply resumes.
By limiting the water level, the system
prevents excessive water dispensing for
safe operation.
Water Supply Pipe
Once the sensor detects feed is dispensed, a preset quantity of water is supplied through this pipe.
